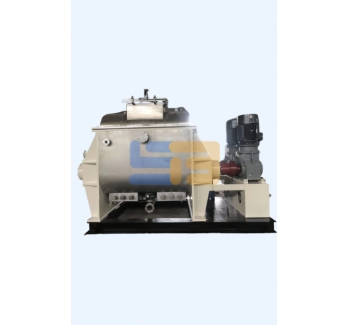

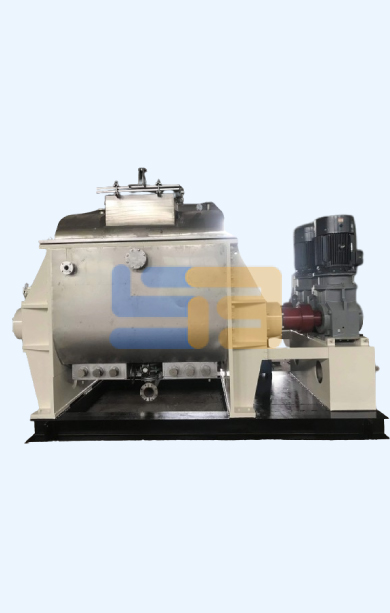

Kneading machine
This series of products is divided into ordinary type, pressure type, and vacuum type. There are two heating methods available, electric and steam, as well as water cooling. The discharge methods include hydraulic tilting, ball valve discharge, and screw extrusion. Vacuum kneading machines can be customized according to user needs and are widely used in industries such as silicone rubber, pigments, inks, rubber bases, carbon, food, and medicine. The mixing cylinder and mixing paddle of this equipment are both made of stainless steel. The mixing cylinder jacket can be designed with electric heating, steam heating, or water cooling. The discharge methods include hydraulic flipping cylinder, screw extrusion, and downward discharge. (Customizable according to user needs) Model NH-500NH-600NH-800N
This series of products is divided into ordinary type, pressure type, and vacuum type. There are two heating methods available, electric and steam, as well as water cooling. The discharge methods include hydraulic tilting, ball valve discharge, and screw extrusion. Vacuum kneading machines can be customized according to user needs and are widely used in industries such as silicone rubber, pigments, inks, rubber bases, carbon, food, and medicine. The mixing cylinder and mixing paddle of this equipment are both made of stainless steel. The mixing cylinder jacket can be designed with electric heating, steam heating, or water cooling. The discharge methods include hydraulic flipping cylinder, screw extrusion, and downward discharge. (Can be customized according to user needs)
| model | NH-500 | NH-600 | NH-800 | NH-1000 | NH-1500 | NH-2000 | NH-3000 | NH-5000 | NH-8000 | |
| volume（L） | 500 | 600 | 800 | 1000 | 1500 | 2000 | 3000 | 5000 | 8000 | |
| stirring speed（rpm） | 33、23 | 33、23 | 35、22 | 37、21 | 37、21 | 35、25 | 30、16 | 30、16 | 30、16 | |
| Host electrical power（KW） | 18~22 | 22~37 | 30~45 | 55~75 | 55~75 | 75~90 | 75~110 | 110~200 | 160~250 | |
| Heating method | Steam: pressure（MPA） | 0.3 | ||||||||
| Electric heating: power（KW） | Customized according to customer requirements | |||||||||
| vacuum degree（MPA） | -0.094（Vacuum kneading machine） | |||||||||
| pressure（MPA） | 0.45（Pressure type kneading machine） | 0.35（Pressure type kneading machine） | ||||||||
